Description

Philips CoreLine Panel gen6 LED advantages

The Philips CoreLine Panel gen6 LED offers you efficient 26W performance, a bright 4000K neutral white light, and a clean low-glare UGR19 rating. You get reliable 3600 lumens of output with an elegant 1200x300mm format that suits office spaces, schools, or any professional environment.

Energy efficiency and light quality

This LED panel combines strong luminous efficacy of 138 lumens per watt, low power consumption, and a neutral 4000K color temperature. You enjoy uniform illumination with a wide 90° beam spread, ideal for general lighting applications. With a CRI above 80, colors appear natural and clear, helping you work or learn with comfort.

Reliable and long-lasting design

Built with durable steel housing and a high-quality optic cover, this fixture ensures resistance to daily use. Rated L90 at 50,000 hours, it maintains excellent lumen performance over time. Certified with CE and ENEC marks and compliant with RoHS standards, you can trust this panel for safe and consistent operation.

Technical specifications

  • Philips CoreLine Panel gen6 LED 26W 4000K 3600 lumens provides efficient, glare-controlled lighting for professional spaces.
  • Dimensions of 1200x300mm make it ideal for modular ceilings and uniform grid installations.
  • Luminous flux of 3600 lumens ensures bright yet comfortable light output.
  • Neutral white color temperature of 4000K supports a productive and welcoming atmosphere.
  • Power factor of 0.9 reduces energy losses and improves system compatibility.
  • Rated IP20/44 and IK02, suitable for indoor environments with basic dust protection.
  • UGR19 guarantees low glare, perfect for office and classroom use.
  • Non-dimmable driver with push-in connector allows quick and secure installation.
  • Designed for 220-240V input with 50/60 Hz frequency range for global compatibility.
  • Backed by a 5-year warranty, ensuring peace of mind and reduced maintenance.
Specifications

General

Product Name
CoreLine Panel gen6
Product Code
RC132V G6 36S/840 PSU W30L120 OC
Warranty Period
5 years
Driver Included
Yes
Service Tag
Yes
Maintenance Class
Class C, maintenance-free
Number of Gear Units
1

Lighting Characteristics

Luminous Flux
3600 lm
Luminous Efficacy
138 lm/W
Correlated Color Temperature (CCT)
4000 K
Light Source Color
840 neutral white
Color Rendering Index (CRI)
>80
Luminaire Beam Spread
90°
Light Source Beam Angle
90°
Unified Glare Rating (UGR)
19
Initial Chromaticity
(0.38, 0.38) SDCM ≤3
Luminous Flux Tolerance
±10%

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Power Consumption
26 W
Power Consumption Tolerance
±10%
Power Factor
0.9
Inrush Current
16 A
Inrush Time
0.2 ms
Total Harmonic Distortion
20%
Connection
Push-in connector, 2-pole
Number of Products on MCB (16A type B)
30
IEC Protection Class
Class II

Physical Attributes

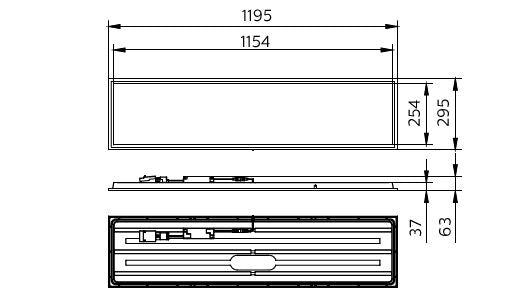

Dimensions
Overall Length
1195 mm
Overall Width
295 mm
Overall Height
63 mm
Mounting Length
1154 mm
Mounting Width
254 mm
Net Weight
2.35 kg
Housing Material
Steel
Housing Color
White
Reflector Material
Acrylate
Optic Material
Polystyrene
Optical Cover Material
Polystyrene
Optical Cover Finish
Diamond
Ingress Protection Code
IP20/44
Impact Protection Rating (IK Code)
IK02 (0.2 J)

Control and Dimming

Dimmable
No
Driver Type
External power supply unit (On/Off)
Constant Light Output
No
Emergency Operation
No

Performance and Lifetime

Ambient Temperature Range
-10 to +35 °C
Performance Ambient Temperature
25 °C
Lumen Maintenance (50,000 hours)
L90
Lumen Maintenance (100,000 hours)
L80
Driver Failure Rate (50,000 hours)
5%
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
0.4

Compliance and Safety

CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes
Flammability Mark
For mounting on normally flammable surfaces
Glow-Wire Test
650 °C, 30 s
Photobiological Risk
Group 0 @ 200 mm
Safety Device
SC (Safety Cable)

Ordering Information

Order Code
8720169735149
Material Number (12NC)
911401890785
EAN/UPC (Product)
872016973514999
EAN/UPC (Case)
8720169735293
Pieces per Pack
1
Packs per Outer Box
4
