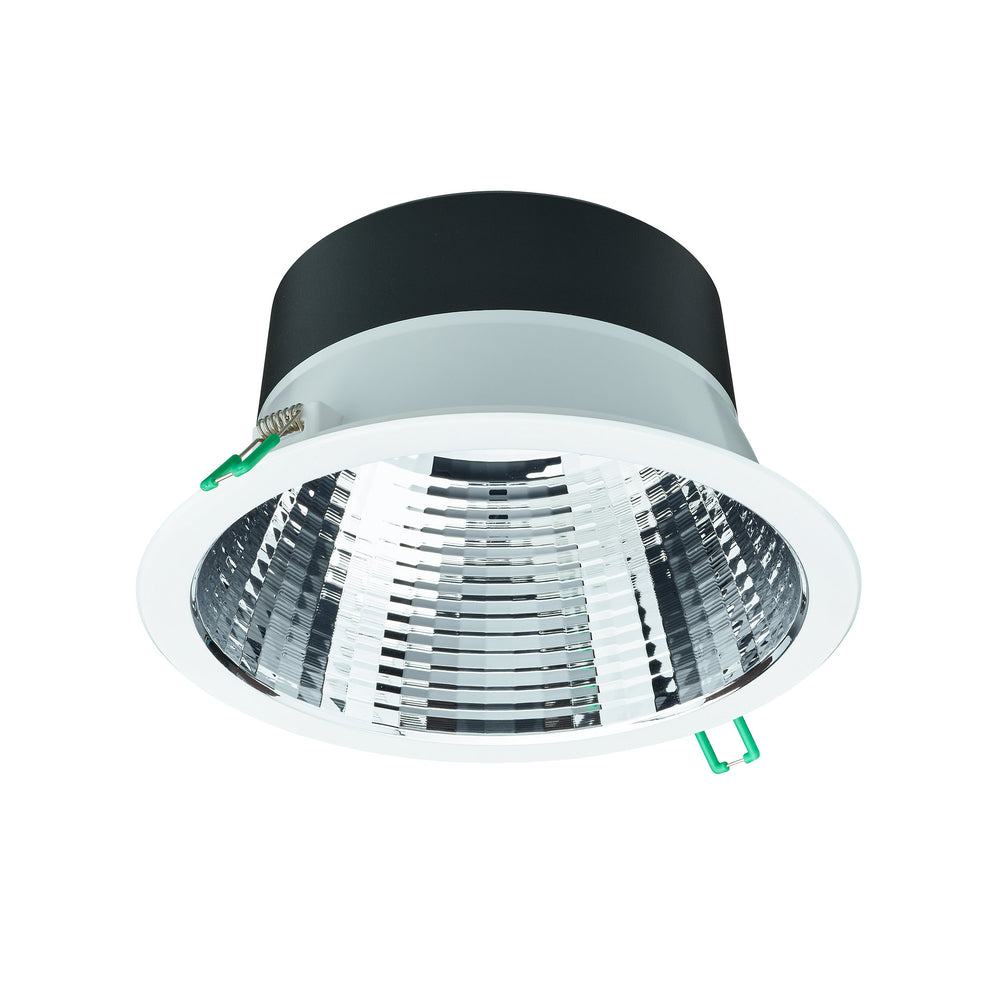

Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout

LED Downlight CoreLine Gen5 DN142B 216x105 mm
-
2300 lm
-
4000K
-
5 year warranty
-
230V
-
<19

PH502918
Energy label
843
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine Downlight Gen5 DN142B LED 19W 2300 lumens 4000K UGR19 IP20 White 216mm Cutout
LED Downlight CoreLine Gen5 DN142B 216x105 mm
-
2300 lm
-
4000K
-
5 year warranty
-
230V
-
<19
843
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Discover the Philips CoreLine Downlight Gen5

The Philips CoreLine Downlight Gen5 DN142B LED offers you efficient 2300 lumens output, crisp 4000K neutral white light, and a low-glare UGR19 rating. You’ll enjoy consistent lighting performance, easy installation, and reliable energy savings with this professional LED downlight.

Why choose this LED downlight

You get a compact design with strong 120 lm/W efficiency, a glare-free experience that supports visual comfort, and a maintenance-free build designed for long-lasting reliability. Perfect for commercial offices, retail spaces, or general lighting needs where quality matters.

Key features and benefits

  • Philips CoreLine Downlight Gen5 DN142B LED 19W delivers 2300 lumens of bright, neutral 4000K light, making it great for everyday use.
  • 19.2W power consumption with high efficiency (120 lm/W) helps you reduce energy costs.
  • UGR19 glare rating provides visual comfort, essential for offices and workspaces.
  • External driver (PSU-E) included for reliable operation and quick installation.
  • Cutout size of 200-205 mm makes it easy to replace older downlights without major ceiling modifications.
  • Polycarbonate housing with White finish ensures a modern look that blends into any ceiling.
  • IP20 and IK02 protection make it suitable for indoor use in safe environments.
  • L80 lifespan at 50,000 hours means durable performance with minimal maintenance.
  • Certified with CE, ENEC, and RoHS compliance for safety and environmental standards.

Applications

You can use this LED downlight in offices, conference rooms, corridors, retail environments, and other general lighting areas where energy efficiency and visual comfort play a key role. Its simple design and high-quality illumination ensure it fits in seamlessly with modern interiors.

Specifications

General Information

Product Family
CoreLine Downlight Gen 5
Product Model
DN142B 20S/840 PSU-E UGR19
Lamp Type
LED
Light Source Replaceable
No
Driver Included
Yes
Number of Gear Units
1 unit
Service Tag
Yes
Maintenance Class
Class C, luminaire without serviceable parts, maintenance-free

Electrical Ratings

Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Power Consumption
19.2 W
Power Consumption Tolerance
+/-10%
Power Factor
0.9
Inrush Current
10 A
Inrush Time
0.002 ms
Total Harmonic Distortion
35%
Connection Type
Push-in connector, 4-pole
Cable
2 cables 0.15 m with plugs, 2-pole
Number of Products on MCB 16A Type B
100
Suitable for Random Switching
Yes

Light Technical

Luminous Flux
2300 lm
Luminous Flux Tolerance
+/-10%
Luminous Efficacy
120 lm/W
Correlated Color Temperature
4000 K
Light Source Color
840 neutral white
Color Rendering Index (CRI)
>80
Saturated Red (R9)
<50
Initial Chromaticity
(0.380, 0.377) SDCM≤5
Luminaire Beam Spread
60°
Unified Glare Rating (UGR)
19
Optic Type
Faceted reflector

Physical Attributes

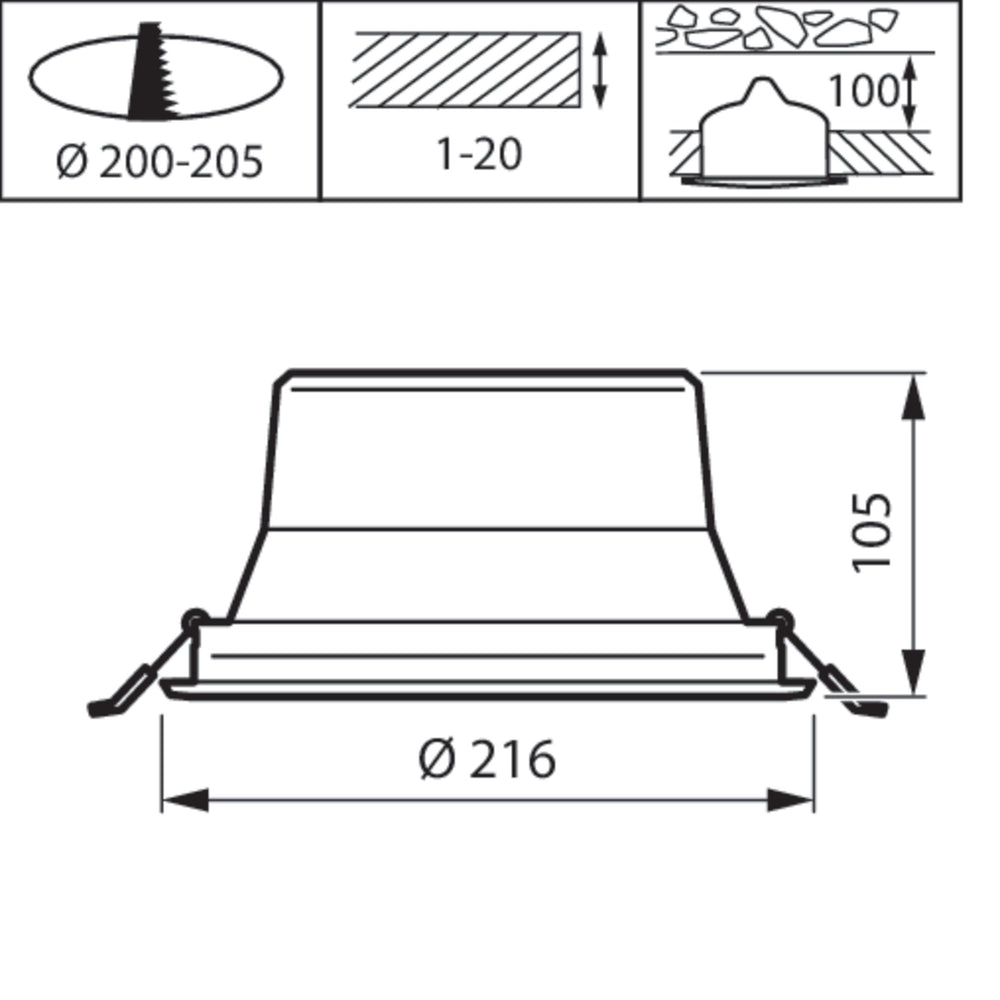

Dimensions
Overall Height
105 mm
Overall Diameter
216 mm
Cutout Diameter
200-205 mm
Mounting Surface Thickness
1-20 mm
Net Weight
0.410 kg
Housing Material
Polycarbonate
Reflector Material
Polycarbonate, aluminum coated
Optical Material
Polycarbonate
Optical Cover Material
Polycarbonate
Housing Color
White
Reflector Finish
Faceted reflector
IP Rating
IP20 (Finger-protected)
IK Rating
IK02 (0.2 J)

Performance and Lifetime

Warranty Period
5 years
Ambient Temperature Range
-20 to +40 °C
Performance Ambient Temperature
25 °C
Lumen Maintenance at 50,000 hours
L80
Driver Failure Rate at 50,000 hours
5%
Flicker Value (PstLM)
0.5
Stroboscopic Effect Value (SVM)
1

Controls and Dimming

Dimmable
No
Driver Type
External power supply unit (on/off)
Constant Light Output
No

Certifications and Standards

CE Mark
Yes
ENEC Mark
Yes
EU RoHS Compliant
Yes
IEC Protection Class
Safety class II
Glow-wire Test
Temperature 650 °C, duration 30 s
Flammability Mark
For mounting on normally flammable surfaces
Photobiological Risk
Photobiological risk group 1 @ 200mm to EN62471

Logistics

Order Product Name
DN142B 20S/840 PSU-E UGR19
Full Product Name
DN142B 20S/840 PSU-E UGR19
Order Code
8720169502918
Material Number (12NC)
911401552432
EAN/UPC Product
8720169502918
Full EOC
872016950291899
Quantity Per Pack
1
Packs Per Outer Box
6
EAN/UPC Case
8720169503236
