Description

Efficient LED downlight for your lighting needs

The Philips DN070B LED downlight gives you reliable performance, stylish design, and energy savings. With 12W power consumption, 4000K neutral white light, and 1200 lumens output, it’s a perfect choice when you want bright yet comfortable illumination. You’ll appreciate its easy installation and maintenance-free design.

Why choose this LED downlight

This Philips LED fixture is designed with a modern round housing in Black, delivering a clean look that blends in with any interior. It combines a 60° beam angle with a UGR19 rating, which means you can enjoy wide coverage without uncomfortable glare. Its long service life of 50,000 hours drastically reduces the need for replacements.

Perfect for multiple applications

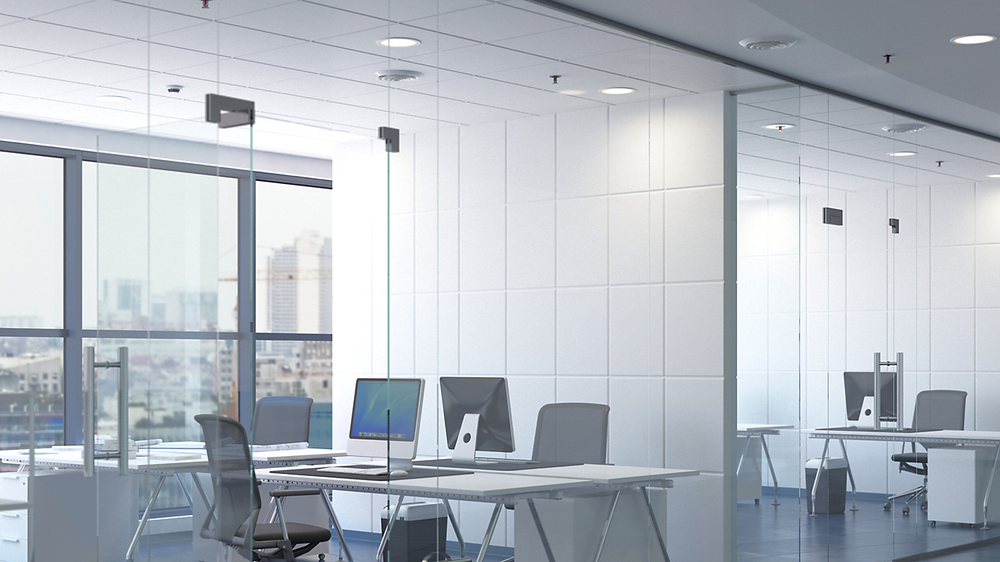

You can use this downlight in offices, hallways, shops, reception areas, or any general indoor lighting project where you want neutral white light. Its IP20/54 protection makes it safe for ceilings and splash-prone zones, while the Class II protection adds safety during operation. With its 150mm cut-out size, you can replace old fittings and upgrade to efficient LED lighting easily.

Main features and benefits

  • Philips DN070B LED downlight 12W 220-240V 4000K delivers 1200 lumens, giving you bright and consistent lighting performance.
  • Neutral white 4000K light color provides a clear, natural tone, great for workspaces and general use.
  • 60° beam angle with UGR19 ensures wide coverage with low glare, making it comfortable for your eyes.
  • Energy efficient with a luminous efficacy of 96 lumens/W, meaning you save on electricity costs.
  • IP20/54 rating makes it dust-protected and splash-proof, so it’s suitable for more than just dry areas.
  • Durable metal and polycarbonate housing ensures reliability and a sleek finish in Black.
  • Maintenance-free design with 50,000 hours lifespan reduces replacement and repair needs.
  • Compact 150mm cut-out size allows easy integration in standard ceiling openings.
  • CE and RoHS compliant, so you can trust it meets high safety and environmental standards.

Technical specifications

  • Brand: Philips
  • Model: DN070B LED12/840 12W 220-240V D150 RD EU
  • Luminous flux: 1200 lumens
  • Color temperature: 4000K neutral white
  • CRI: 80
  • Beam angle: 60°
  • UGR: 19
  • Wattage: 12W
  • Voltage: 220-240V
  • Power factor: 0.9
  • Ingress protection: IP20/54
  • Impact protection: IK03
  • Dimensions: 170mm diameter, 82mm height, 150mm cut-out
  • Housing color: Black
  • Certification: CE, RoHS compliant
Specifications

General

Product Name
Ledinaire inbouw downlight DN070B LED12/840 12W 220-240V D150 RD EU
Lamp Type
LED
Replaceable Light Source
No
Driver Included
Yes
Number of Gear Units
2 units
Serviceability Class
Class C, luminaire without serviceable parts, maintenance-free
Warranty Period
3 years

Lighting Specifications

Luminous Flux
1200 lm
Luminous Efficacy
96.00 lm/W
Correlated Color Temperature
4000 K
Light Source Color
840 neutral white
Color Rendering Index (CRI)
80
Optic Type
Beam angle 60°
Luminaire Beam Spread
60°
Unified Glare Rating (UGR)
19
Initial Color Quality
(0.3795, 0.3827) 5SDCM
Luminous Flux Tolerance
+/-10%
Flicker Value (PstLM)
0.1
Stroboscopic Effect Value (SVM)
0.1

Electrical Specifications

Input Voltage
220-240 V
Input Frequency
50 or 60 Hz
Power Consumption
12 W
Power Consumption Tolerance
+/-10%
Power Factor
0.9
Inrush Current
7.85 A
Inrush Time
0.18 ms
Total Harmonic Distortion
20%
Number of Products on 16A MCB Type B
245
Connection
2-pole connector unit
Cable
0.25 m cable with 3-pole push-in connector

Physical Attributes

Housing Material
Metal/Plastic
Reflector Material
Polycarbonate
Optic Material
Polycarbonate
Optical Cover Material
Polycarbonate
Fixation Material
Steel
Housing Color
Black
Optical Cover Finish
Matt
Net Weight
0.440 kg
Dimensions
Total Length
170 mm
Total Width
170 mm
Total Height
82 mm
Total Diameter
170 mm
Cut-out Hole Diameter
150 mm

Performance and Durability

Ingress Protection Code
IP20/54 (Finger-protected, dust-protected, splash-proof)
Impact Protection Code (IK)
IK03 (0.3 J)
IEC Protection Class
Class II
Ambient Temperature Range
-20 to +40 °C
Median Useful Life
L65 at 50,000 hours
Driver Failure Rate at 5000 hours
0.6%
Glow-wire Test
650 °C, duration 30 s
Flammability Mark
For mounting on normally flammable surfaces

Control and Dimming

Dimmable
No
Driver Type
Power supply unit (on/off)
Constant Light Output
No
Suitable for Random Switching
No

Certifications and Standards

CE Mark
Yes
EU RoHS Compliant
Yes

Product Codes

Order Product Name
DN070B LED12/840 12W 220-240V D150 RD EU
Full Product Name
DN070B LED12/840 12W 220-240V D150 RD EU
Full EOC
871951435400500
Order Code
8719514354005
Material Number (12NC)
929003165432
Numerator Quantity per Pack
1
EAN/UPC Product
8719514354005
Numerator Packs per Outer Box
12
EAN/UPC Case
8719514354012
