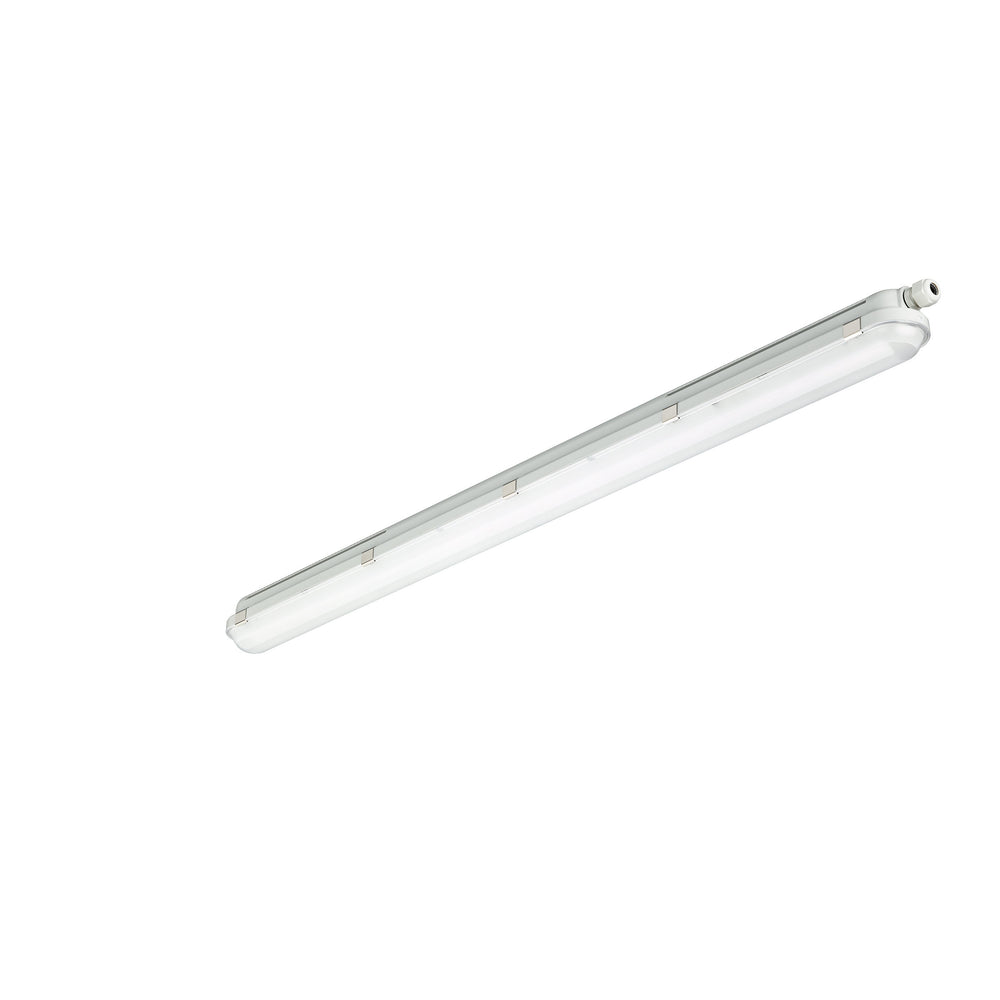

Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray

LED CoreLine 121.5 cm
-
28.6W
-
4000 lm
-
4000K

PH840480
Energy label
982
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine WT120C G2 LED waterproof batten, 29W 4000K 4000 lumens, IP65 IK08, 1215mm Gray
LED CoreLine 121.5 cm
-
28.6W
-
4000 lm
-
4000K
982
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

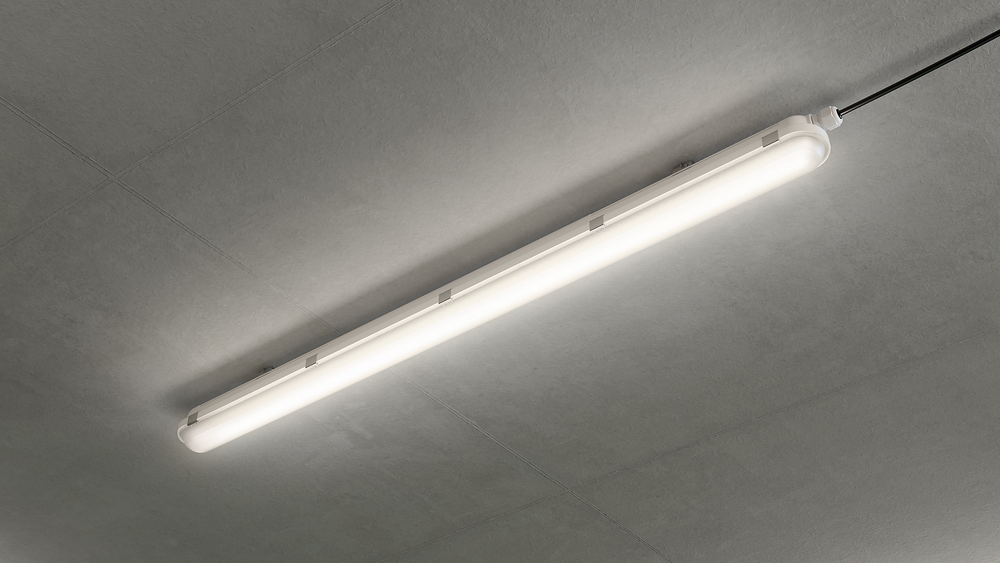

Durable LED waterproof batten for versatile lighting

The Philips CoreLine WT120C G2 LED waterproof batten is designed to provide you with reliable LED lighting that delivers 4000 lumens of bright neutral white light at 4000K. You’ll love its energy-efficient 29W design, its IP65 dust and water protection, and IK08 impact resistance for demanding environments.

Why this LED batten is ideal for you

This Philips LED luminaire gives you uniform wide-beam illumination with a frosted diffuser, ensuring reduced glare (UGR 25) for comfort. Thanks to its robust polycarbonate housing and stainless-steel fixings, it’s ready for warehouses, garages, workshops, corridors, and moisture-prone areas. With a long life of up to 100,000 hours (L70), it helps you cut down on maintenance while enjoying steady quality light.

Main features

  • Philips CoreLine WT120C G2 LED waterproof batten delivers 4000 lumens of 4000K neutral white light for bright and efficient illumination.
  • Energy consumption of just 29W provides high luminous efficacy of 140 lumens per watt, saving you power while ensuring great brightness.
  • IP65 rating makes it fully dust-protected and jet-proof, ideal for damp and dusty installations.
  • IK08 impact protection ensures durability even in environments with potential mechanical stress.
  • CRI >80 offers natural colour rendering, helping you see true colours in workspaces and storage areas.
  • Frosted wide-beam diffuser spreads light evenly with reduced glare for user comfort.
  • Long lifetime performance with 50,000 hours L80 and 100,000 hours L70 reduces relamping and servicing needs.
  • Easy installation thanks to push-in 3-pole connector and through-wiring for 1-phase connections.
  • Measuring 1215mm length, 80mm width, and 76mm height, this slim luminaire fits neatly in narrow or standard applications.
  • CE and ENEC certified plus RoHS compliant to meet European safety and environmental standards.

Practical applications

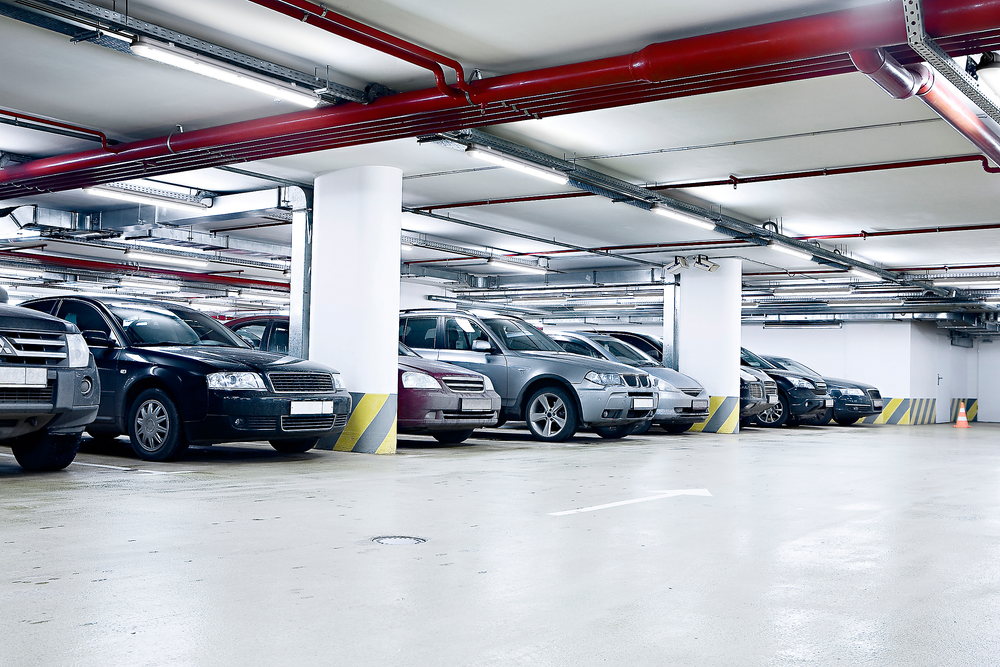

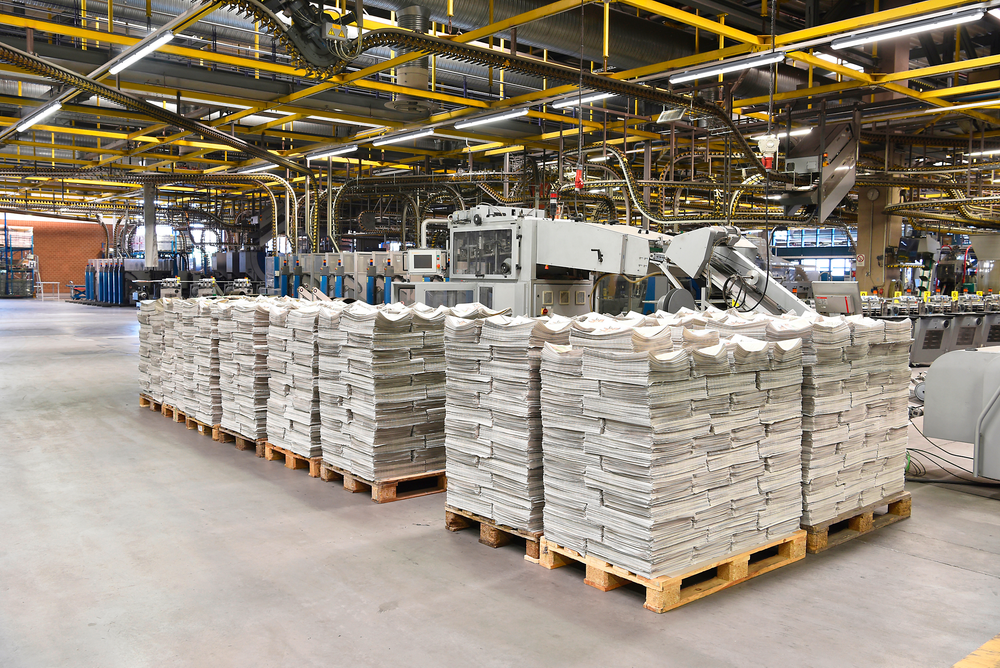

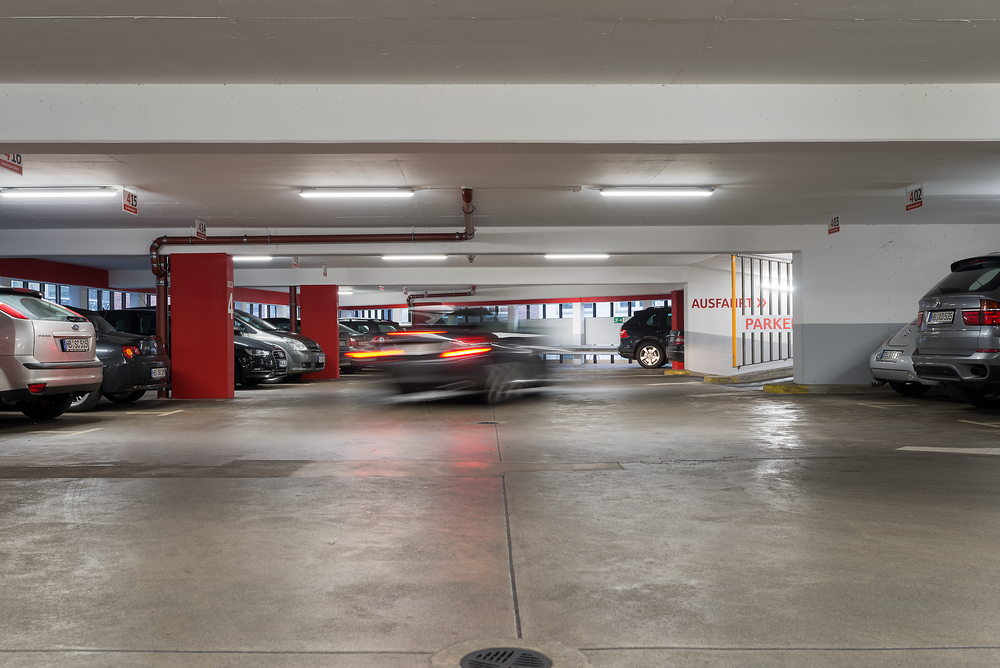

You can use this Philips waterproof LED batten for under-canopy areas, industrial sites, car parks, garages, workshops, or utility rooms where powerful and uniform light is needed. Its robust design makes it a dependable choice for both indoor and semi-outdoor covered installations.

Specifications

General

Product Family
CoreLine Waterdicht
Full Product Name
WT120C G2 LED40S/840 PSU L1200
Product Family Code
WT130C
Lamp Type
LED
Replaceable Light Source
No
Driver Included
Yes
Service Tag
Yes
Warranty Period
5 years
InterAct Ready
Yes (TW1-ready)
Maintenance Ease Class
Class B, luminaire is equipped with some serviceable parts

Light Technical

Luminous Flux
4000 lm
Luminous Efficacy
140 lm/W
Correlated Color Temperature
4000 K
Light Source Color
840 Neutral White
Color Rendering Index (CRI)
>80
Beam Angle
105°
Optic Type
Wide beam
Optical Cover Finish
Frosted
Unified Glare Rating (UGR)
25
Initial Chromaticity
(0.38, 0.38) SDCM<=3
Luminous Flux Tolerance
+/-10%
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
1.6

Performance Over Time

Driver Failure Rate at 50,000 hrs
5%
Lumen Maintenance at 50,000 hrs
L80
Lumen Maintenance at 100,000 hrs
L70

Electrical Ratings

Power Consumption
28.6 W
Power Consumption Tolerance
+/-10%
Input Voltage
220-240 V
Input Frequency
50 to 60 Hz
Inrush Current
14.2 A
Inrush Time
0.222 ms
Power Factor
0.9
Total Harmonic Distortion
20%
IEC Protection Class
Class I
Number of Products on MCB (16A type B)
36

Controls and Dimmability

Dimmable
No
Driver Type
Power supply unit (on/off)
Constant Light Output
No
Connection
Push-in connector, 3-pole
Through-Wiring
Available for 1-phase wiring (internal wiring not included)
Suitable for Random Switching
Not applicable

Physical Attributes

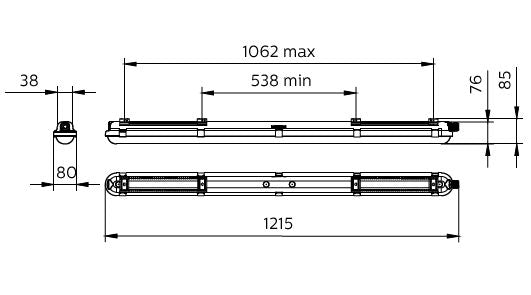

Dimensions
Overall Length
1215 mm
Overall Width
80 mm
Overall Height
76 mm
Mounting Hole Distance
538 mm (min) to 1062 mm (max)
Net Weight
1.260 kg
Housing Material
Polycarbonate
Reflector Material
Steel
Optical Material
Polycarbonate
Optical Cover Material
Polycarbonate
Fixation Material
Stainless steel
Housing Color
Gray

Approvals and Application Conditions

Ingress Protection Code
IP65 (Dust penetration-protected, jet-proof)
Impact Protection Code
IK08 (5 J vandal-protected)
Flammability Mark
For mounting on normally flammable surfaces
Glow-Wire Test
850 °C, duration 30 s
Operating Temperature Range
-20 to +40 °C
Ambient Temperature Performance
25 °C
CE Mark
Yes
ENEC Mark
Yes
RoHS Compliant
Yes
Photobiological Risk
Risk group 0 at 200mm to EN62778

Order Information

Order Product Name
WT120C G2 LED40S/840 PSU L1200
Order Code
8718291840480
Full EOC
871829184048099
Material Number (12NC)
911401823780
EAN/UPC - Product
8718291840480
EAN/UPC - Case
8710163346342
Quantity Per Pack
1
Packs Per Outer Box
9
