Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray

LED Waterproof batten CoreLine IP 65 Gray polycarbonate
-
26W
-
3400 lm
-
4000K
-
Dimmable
-
5 year warranty

PH962678
Energy label
1,227
Stock: 30+
Expected delivery time: 7 - 9 dagen
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Philips CoreLine WT120C G2 LED waterproof batten 26W 4000K 3400 lumens IP65 IK08 1515mm Gray
LED Waterproof batten CoreLine IP 65 Gray polycarbonate
-
26W
-
3400 lm
-
4000K
-
Dimmable
-
5 year warranty
1,227
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 49,-
Description

Reliable LED waterproof batten for your projects

The Philips CoreLine WT120C G2 LED waterproof batten offers you 3400 lumens of bright neutral white light at 4000K with excellent energy efficiency. You get a robust IP65 and IK08 rated housing that is perfect for demanding environments, along with durable polycarbonate construction that ensures long-lasting performance.

Why you will like this LED batten

This reliable LED waterproof light is designed to serve you in both industrial and commercial spaces where moisture, dust, or impact are concerns. You benefit from its long 50,000-hour lifetime (L80) and stable performance supported by a 5-year warranty. Philips has also integrated motion and light sensors for on/off detection, which helps you save energy without thinking about it.

Typical applications

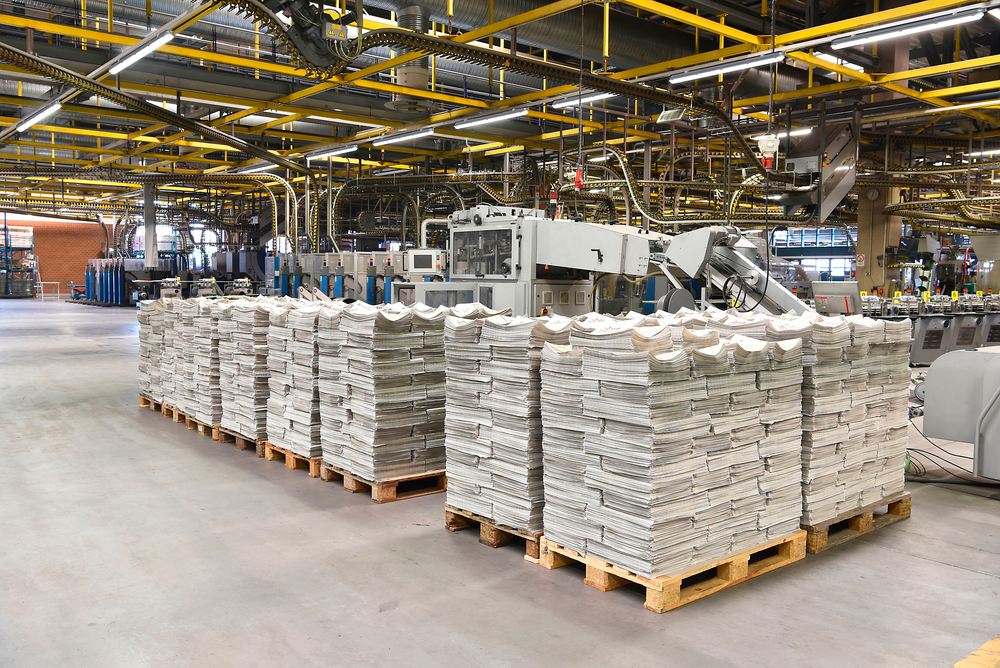

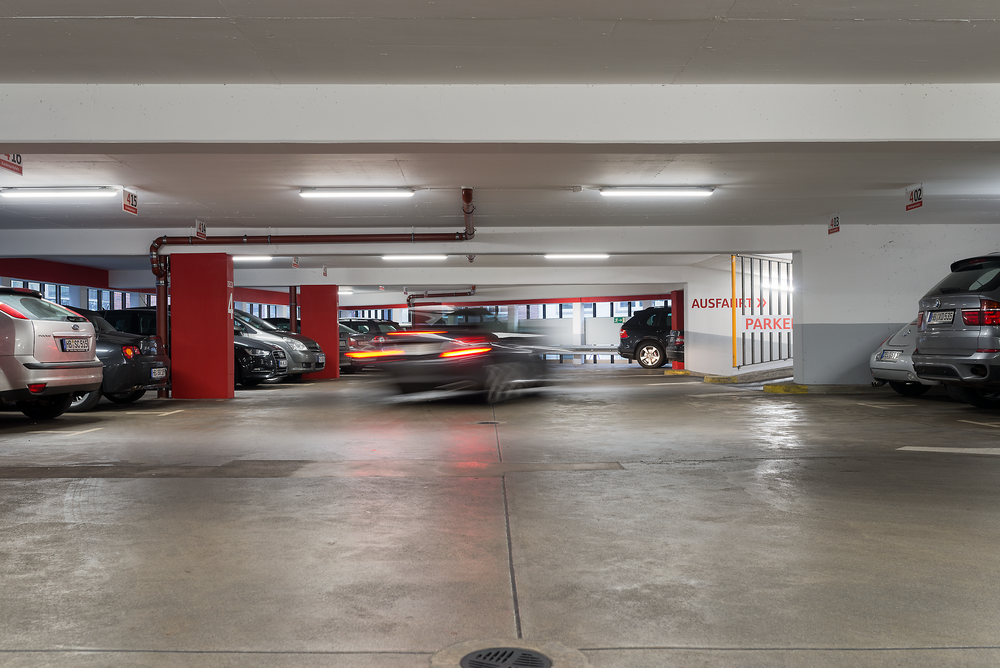

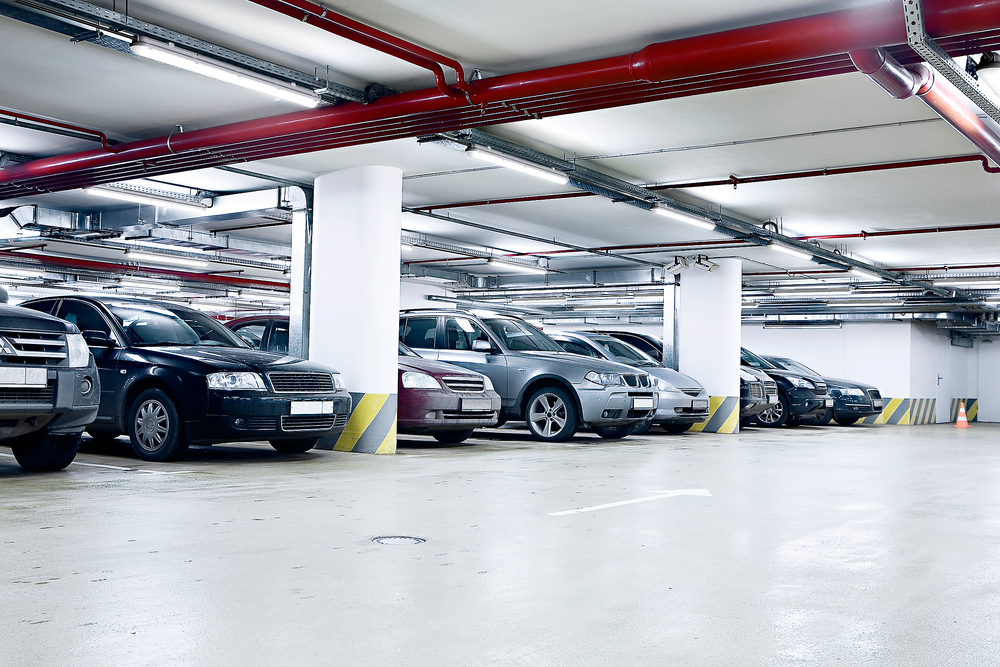

You can use this LED batten in warehouses, car parks, workshops, or utility areas that require strong and uniform lighting. Its wide 105° beam angle ensures consistent light distribution, making it ideal to illuminate your space evenly without dark spots. Installation is simple with through-wiring and secure stainless steel fixations.

Key technical specifications

  • Philips CoreLine WT120C G2 LED waterproof batten offers 3400 lumens at 4000K for bright neutral white light in tough environments.
  • Power consumption is just 26W, giving you excellent energy savings.
  • A wide 105° beam angle delivers uniform illumination across your area.
  • IP65 and IK08 ratings protect against dust, water, and impact so you can trust it in warehouses, garages, and workshops.
  • Housing is polycarbonate with a matt optical cover for durability and glare control.
  • Motion and light sensor integrated for convenient on/off switching.
  • Operational temperature range between -20°C and +35°C for versatility.
  • CE, ENEC and RoHS compliant ensuring safe quality standards.
  • Long service life with lumen maintenance L80 at 50,000 hours ensures reduced maintenance costs.
  • Dimensions: 1515mm length, 80mm width, 76mm height for streamlined installation.

Conclusion

If you are looking for a hassle-free, energy-efficient, and durable LED waterproof solution for your workplace or utility space, the Philips CoreLine WT120C G2 is an excellent choice. With strong lumen output, reliable construction, and integrated sensors, it helps you save energy while maintaining superior lighting quality.

Specifications

General

Product Name
CoreLine Waterdicht WT120C G2
Full Product Code
WT120C G2 LED34S/840 PSU MDU L1500
Product Family Code
WT130C
Light Source Type
LED Module
Lamp Type
LED
Light Source Replaceable
No
Driver Included
Yes
Number of Control Gears
1 unit
Serviceability Class
Class B
Service Tag
Yes
Warranty Period
5 years
Special Feature
TW1-ready

Light Technical

Luminous Flux
3400 lm
Luminous Efficacy
131 lm/W
Color Temperature
4000 K
Color Rendering Index (CRI)
>80
Light Source Color
840 Neutral White
Beam Angle
105°
Optic Type
Wide beam
Unified Glare Rating (UGR)
25
Initial Chromaticity
(0.38, 0.38) SDCM ≤ 3
Luminous Flux Tolerance
±10%

Electrical Ratings

Input Voltage
220 to 240 V
Input Frequency
50 or 60 Hz
Power Consumption
26 W
Power Consumption Tolerance
±10%
Power Factor
0.86
Inrush Current
5.16 A
Inrush Time
0.047 ms
Total Harmonic Distortion (THD)
20%
Connection Type
3-pole push-in connector
IEC Protection Class
Class I
Number of Products on MCB 16A Type B
36
Through-wiring
Available for 1-phase (internal wiring not included)
Suitable for Random Switching
Yes

Controls and Dimming

Dimmable
Yes
Driver Type
Power supply unit (on/off)
Control Interface
Sensor-based dimmer
Integrated Control
Motion and light sensor (on/off)
Constant Light Output
No
Maximum Dim Level
Not applicable

Physical Attributes

Housing Material
Polycarbonate
Reflector Material
Steel
Optical Material
Polycarbonate
Optical Cover Material
Polycarbonate
Fixation Material
Stainless steel
Housing Color
Gray
Optical Cover Finish
Matt
Net Weight
1.820 kg

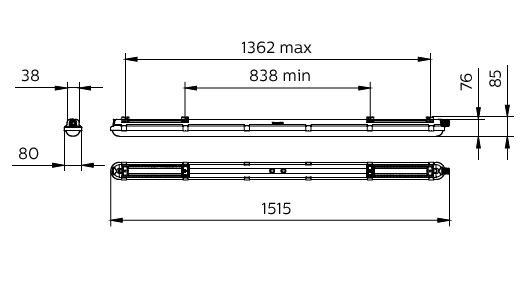

Dimensions
Overall Length
1515 mm
Overall Width
80 mm
Overall Height
76 mm
Mounting Distance Minimum
838 mm
Mounting Distance Maximum
1362 mm

Operating Conditions

Ambient Temperature Range
-20 to +35 °C
Performance Ambient Temperature
25 °C
IP Rating
IP65
IK Rating
IK08
Flicker Value (PstLM)
1
Stroboscopic Effect Value (SVM)
1.6

Performance Over Time

Driver Failure Rate (50,000 hours)
5%
Lumen Maintenance (50,000 hours)
L80
Lumen Maintenance (100,000 hours)
L70

Standards and Approvals

CE Mark
Yes
ENEC Mark
Yes
Flammability Mark
F
Glow Wire Test
Temperature 850 °C, duration 30 s
Photobiological Risk
Risk Group 0
EU RoHS Compliant
Yes

Order Information

Order Product Name
WT120C G2 LED34S/840 PSU MDU L1500
Order Code
8718699962678
Material Number (12NC)
910505100059
Local Code
8718699962678
EAN/UPC (Product)
8718699962678
EAN/UPC (Case)
8718699962678
Full EOC
871869996267800
Quantity Per Pack
1
Packs Per Outer Box
1
