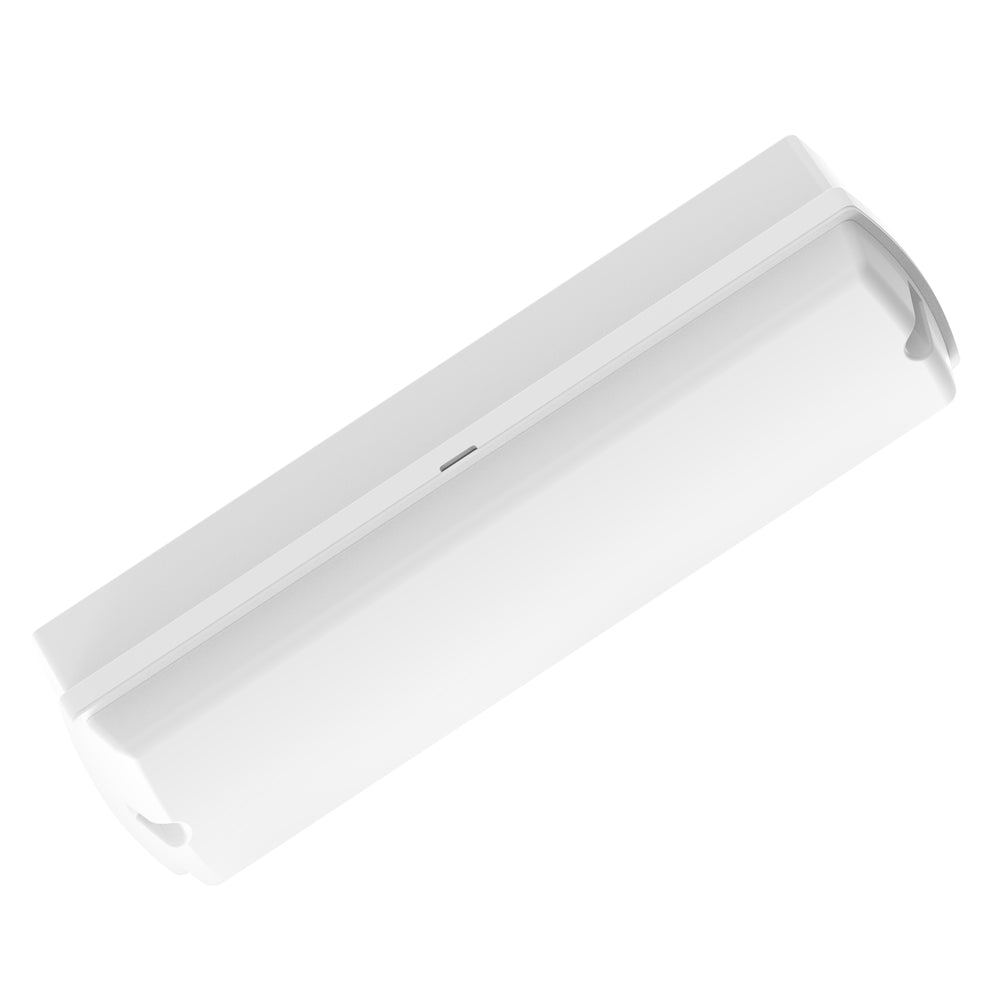

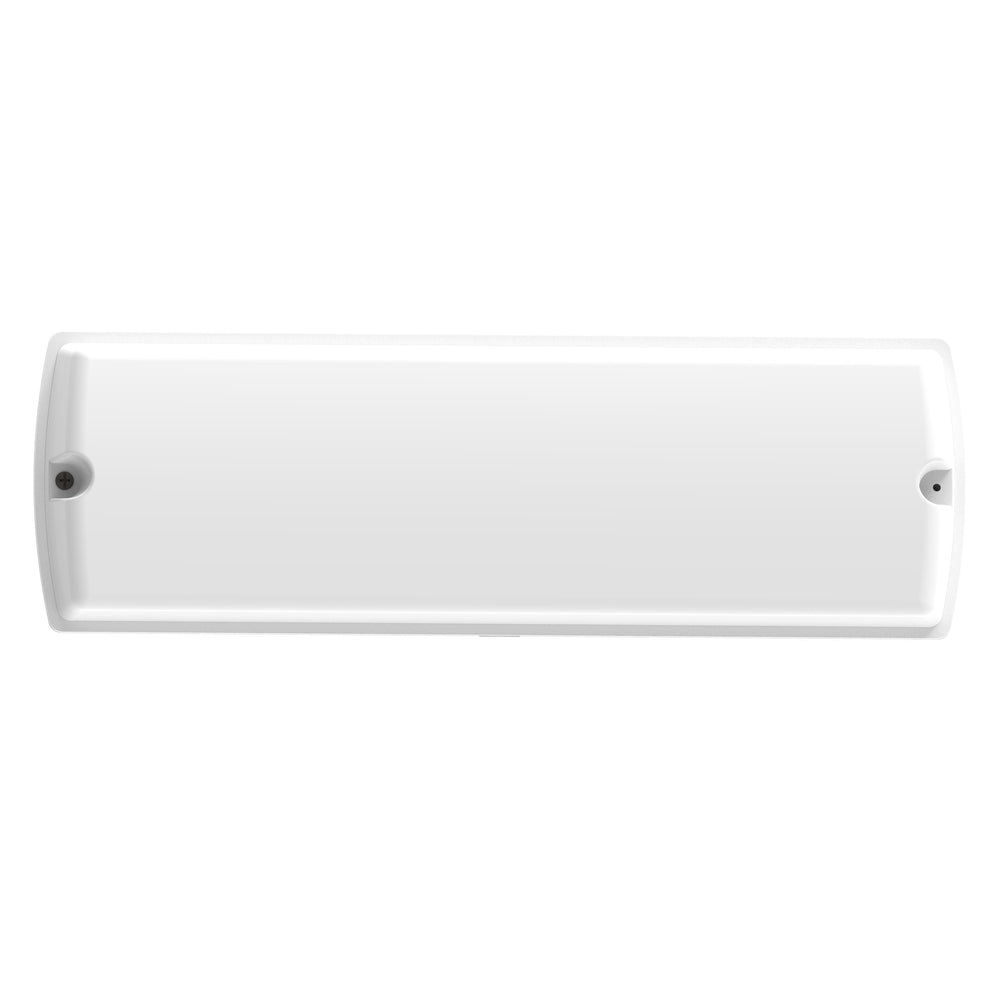

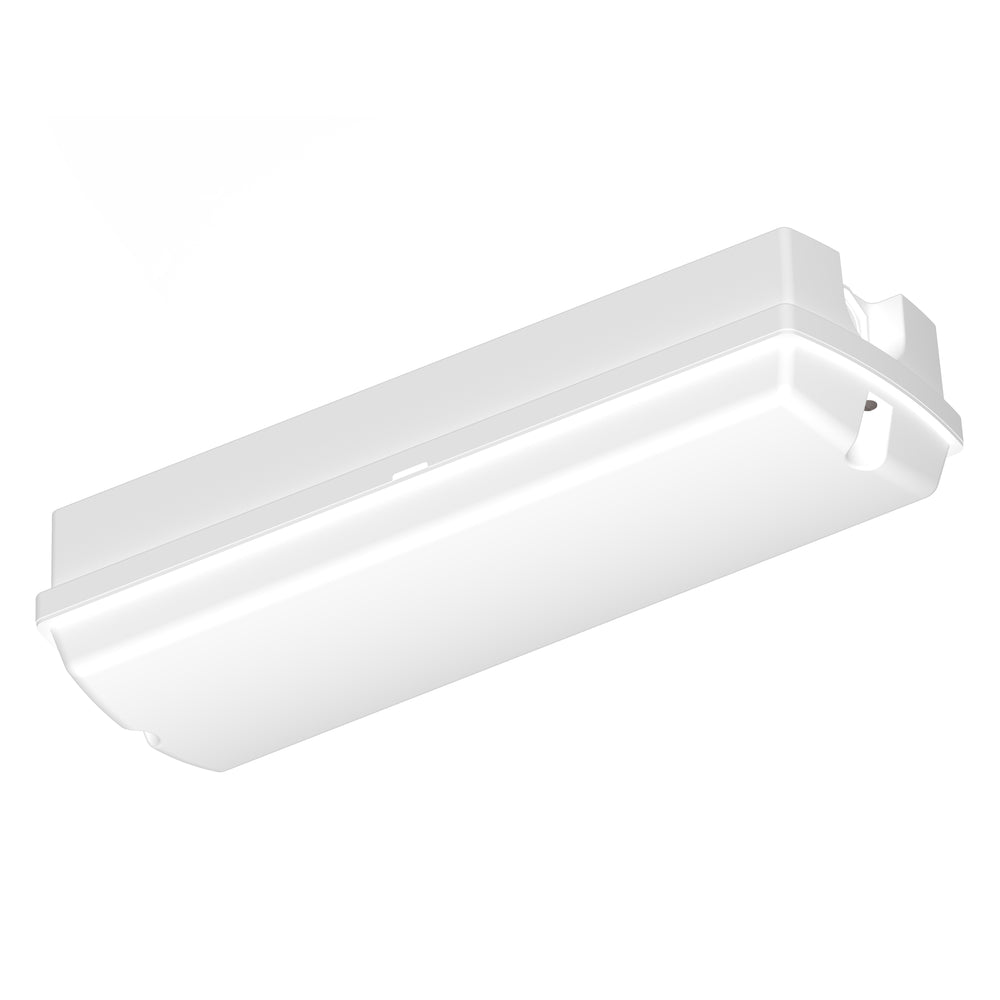

LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm

LED Bulkhead Compact Rectangular with Sensor
-
230V
-
White
-
incl. sensor

LV290602
Datasheet
SEK
659.95
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 650,-
LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm
LED Bulkhead Compact Rectangular with Sensor
-
230V
-
White
-
incl. sensor
SEK
659.95
Expected delivery time: 1 - 3 days
Shipped from:
Dutch warehouse
European warehouse
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 650,-
Shopping cart

Your cart is empty

No idea where to start? Try these categories:

Total Including VAT
0.00
  • Pay later within 30 days
  • Return up to 60 days later
  • Ordered before 7:00 PM, shipped the same day
  • Free shipping on orders over 650,-
Description

Compact LED bulkhead for versatile indoor and outdoor lighting

This LED bulkhead gives you reliable illumination at 5W or 9W with a warm 3000K glow. You get the benefits of dimmable brightness, weather protection with IP65, and a compact 356x115mm design. It’s a smart choice when you need efficient, durable, and stylish lighting for your space.

Why this LED bulkhead is a great fit

You’ll love how this bulkhead combines energy efficiency, long-lasting performance, and a sleek white finish. Whether you want to brighten up entrances, corridors, or outdoor facades, this lamp delivers dependable light with up to 840 lumens of output.

Main features and benefits

  • LED Bulkhead Compact White 5W/9W 3000K 500/840 lumens IP65 Dimmable 356x115mm is built for reliable performance in harsh conditions.
  • Offers two wattage options (5W and 9W) so you can choose between energy savings and higher light output.
  • 3000K warm white light creates a cozy and welcoming atmosphere suitable for both residential and commercial areas.
  • Delivers 500 lumens at 5W or 840 lumens at 9W, giving you the flexibility to match brightness to your needs.
  • IP65 protection ensures resistance against dust and water jets, making it ideal for outdoor applications.
  • Dimmable functionality helps you create the right mood or save even more energy when full brightness isn’t needed.
  • Compact 356x115mm size fits neatly into limited spaces while providing ample illumination.
  • Durable housing in White finish blends seamlessly with many ceiling and wall designs.

Applications

Perfect for both indoor and outdoor use, you can install this LED bulkhead in corridors, stairways, entrances, porches, or exterior walls. Its weatherproof IP65 build makes it ideal for areas exposed to dust or splashing water, while the dimming feature is great for creating ambient lighting.

Specifications

General

Product Name
BLKH COMP RC SN V 9W ML 83040 WT
Product Type
Bulkhead Compact Rectangular Luminaire with Sensor
Key Features
Robust wall and ceiling luminaire with IP65 protection and high-frequency sensor
Additional Functions

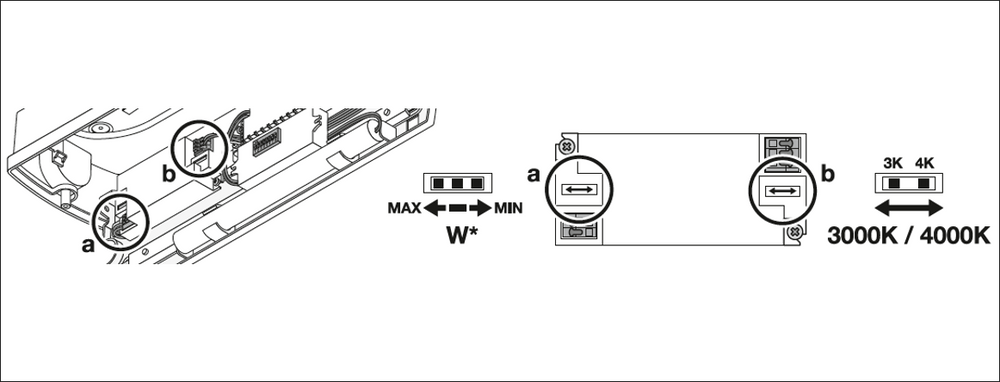

Multi Select (Selectable Power and Color Temperature)
EPD Code
LEDV-00052-V01.01-EN

Electrical Data

Operating Mode
Integrated LED driver
Nominal Wattage
9 W / 7 W / 5 W (Selectable)
Nominal Voltage
220-240 V
Mains Frequency
50/60 Hz
Nominal Current
49-63 mA
Inrush Current
4 A
Inrush Current Time
180 µs
Power Factor
> 0.5
Total Harmonic Distortion
< 64%
Protection Class
II
Connection Type
Screwless push wire terminal
Through Wiring
Possible
Max Luminaires per Breaker B16
104
Max Luminaires per Breaker C10
87
Max Luminaires per Breaker C16
140

Photometrical Data

Luminous Flux
500 lm / 690 lm / 840 lm (Selectable)
Luminous Efficacy
93 lm/W / 98 lm/W / 100 lm/W (Selectable)
Color Temperature
3000 K / 4000 K (Selectable)
Light Color
Warm White / Cool White
Color Rendering Index
> 80
Color Matching Deviation
5 sdcm
Beam Angle
125 degrees
Low Flicker
Yes
Flickering Metric (Pst LM)
< 1
Stroboscope Effect Metric (SVM)
< 0.4
Photobiological Safety Group
RG0

Physical Attributes

Dimensions
Length
356 mm
Width
115 mm
Height
80 mm
Product Weight
580 g
Product Color
White
RAL Color
RAL 9003
Body Material
Polycarbonate (PC)
Cover Material
UV-resistant Polycarbonate (PC)

Environmental and Durability

IP Rating
IP65
IK Rating
IK10
Ambient Operating Temperature
-20 to +45 °C
Storage Temperature
-20 to +80 °C
Lifespan L70/B50 at 25 °C
50000 h
Lifespan L80/B10 at 25 °C
40000 h
Lifespan L80/B50 at 25 °C
45000 h
Lifespan L90/B10 at 25 °C
20000 h
Switching Cycles
100000
Mercury Free
Yes
Glow Wire Test
850 °C

Installation

Mounting Type
Surface
Mounting Location
Ceiling, Wall
Application Environment
Outdoor

Light Source Controls

Dimmable
No
Integrated Light Source
Yes
Replaceable Light Source
No

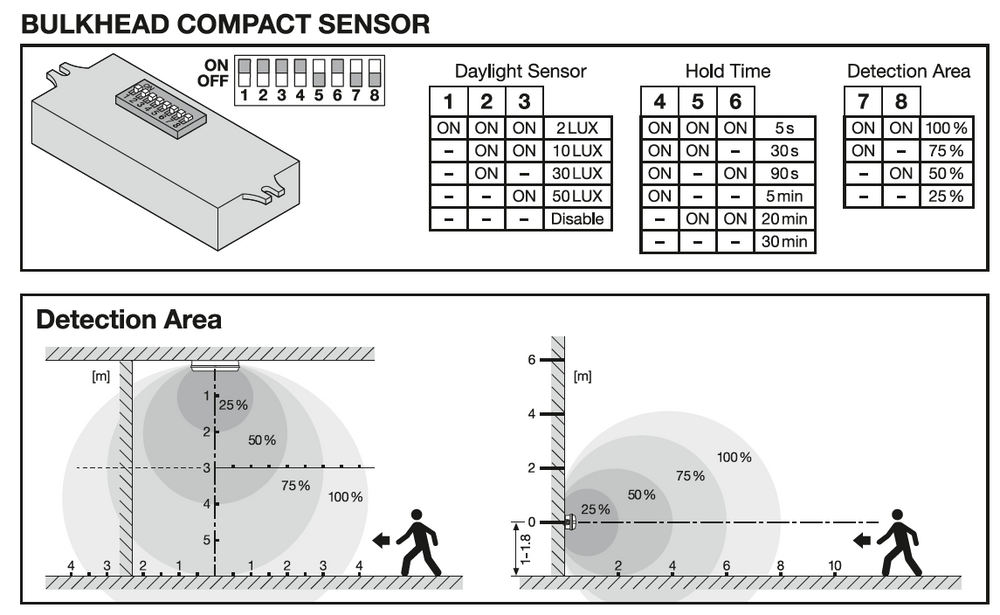

Sensor

Sensor Type
Motion and Light
Sensor Technology
Microwave
Sensor IP Rating
IP20
Detection Angle
150 degrees
Motion Detection Range
2-8 m
Daylight Detection Threshold
2-50 lx
Controlled Switching Time
5 s to 30 min

Control Gear

Output Current
115-220 mA
Output Ripple Current
< 5%

Certifications and Standards

Standards
CE, CB, UKCA, EAC, ENEC, TÜV SÜD
Limited Surface Temperature (D-Sign)
No
Ball Shot Safe
No

Logistical Data

Single Unit
Product Code
4099854290602
Packaging Type
Folding box
Pieces Per Unit
1
Dimensions
390 x 128 x 85 mm
Gross Weight
670 g
Volume
4.24 dm³
Shipping Unit
Product Code
4099854290619
Packaging Type
Shipping box
Pieces Per Unit
6
Dimensions
400 x 400 x 200 mm
Gross Weight
4020 g
Volume
32.00 dm³
