Push-in Connectors
Push-in connectors, also known as terminals, are essential installation materials for quick, safe, and organized electrical wire connections. These innovative connectors are increasingly replacing traditional wire nuts and terminal blocks thanks to their ease of use and reliability. In the world of push-in connectors, Wago stands as a leading brand, renowned for its high-quality and diverse solutions for any installation.
9 products
-
-
WAGOWAGO connection terminal 5-way 4mm² 221-415 IP20 compatible CE RoHS 220-240V 25 pieces
308 -
LCBLcb waterproof cable connector t-split 3 poles 95.93-106.77mm² IP68
74 -
LCBLasdoos met kroonsteen 3-aderig IP44 LCB
20 -
WAGOwago connecting clamp 3-way 4mm² 221-413, ip20, 220-240v, 12 pieces, ce and rohs certified
99 -
WAGO
Connecting Clamp 5-Fold 4mm² 221-412 - WAGO Connector Set of 8, IP20, CE and RoHS Certified
99 -
LCBLCB stekerbaar verbinding male for Wieland GST18, IP20, 220-240V AC
25 -
LCBLCB stekerbaar female connector compatible with Wieland GST18 - IP20 rated
25 -

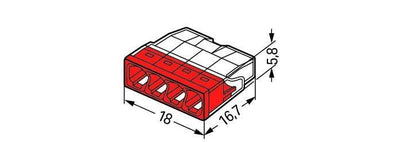

WAGOWAGO 4-conductor terminal block 0.5-2.5 mm² IP20 for indoor use, 2273-204, CE & RoHS certified
357
The Advantages of Wago Push-in Connectors
Wago push-in connectors offer several advantages that make them popular among both professionals and DIY enthusiasts:
- Ease of installation: Wires can be quickly and efficiently connected without tools or with a simple lever mechanism.
- Time-saving: The quick connection significantly reduces installation time, resulting in higher productivity.
- Safe connection: They provide a reliable, vibration-proof, and durable electrical connection.
- Compact design: The compact dimensions save space in junction and distribution boxes.
- Versatile: Suitable for various wire types (solid, stranded, multi-core) and cross-sections.
- Clear overview: Transparent housings allow for visual verification to ensure that the wire is inserted correctly.
The Most Commonly Used Wago Push-in Connectors
Wago offers various series of push-in connectors, each with its own features and applications. The most common series are:
| Wago Series | Features | Wire Types | Connection Range | Applications |
|---|---|---|---|---|
| Wago 221 Series (Compact) | Compact connection terminals with transparent housing and orange operating levers. Designed for fast, tool-free connections. | Solid, stranded, multi-core | 0.14 - 4 mm² (stranded), 0.2 - 4 mm² (solid/multi-core) | General installations, lighting, switching devices. |
| Wago 2273 Series (Compact PUSH WIRE®) | Extremely compact terminals for solid and multi-core wires. Ideal when space is limited. | Solid, multi-core | 0.5 - 2.5 mm² | Smaller junction boxes, distribution panels, renovation projects. |
| Wago 222 Series (Original) | The well-known classic with a grey housing and orange lever arms. A robust solution that offers great flexibility. | Solid, stranded, multi-core | 0.08 - 4 mm² (stranded), 0.08 - 2.5 mm² (solid/multi-core) | General installations, flexible wiring. |
Alt text: Various types of Wago push-in connectors, featuring their distinctive levers and transparent casings.
How to Choose the Right Push-in Connector
When selecting the right push-in connectors, several factors are important:
- Wire type: Check whether the connector is suitable for your wire type (solid, stranded, or multi-core). The Wago 221 and 222 series are versatile, while the 2273 series specifically supports solid and multi-core wires.
- Wire diameter: Ensure that the connection range matches the cross-section of your wires, indicated in square millimeters (mm²).
- Number of conductors: Determine how many wires you want to connect together. Wago push-in connectors are available in versions for 2, 3, 4, 5 or more conductors.
- Space: If space is limited, the compact Wago 2273 and 221 series are an excellent choice.
Safe and Easy Wiring with Push-in Connectors
Connecting wires with Wago push-in connectors is streamlined, provided safety regulations are followed:
- Switch off the power: Always start by de-energizing the installation at the electrical panel for safe operation.
- Strip the wires: Use a wire stripper to remove insulation over the recommended length, usually about 9 to 11 mm. The exact length is often marked on the terminal itself or in the manual.
- Open the terminal (if needed): For Wago 221 and 222 series, open the orange lever. For the Wago 2273 series, simply push the wire in.
- Insert the wire: Insert the stripped wire fully into the terminal until it is secured. For the Wago 221 and 222 series, close the lever to lock the wire. Ensure no copper is visible outside the terminal.
- Check the connection: Gently pull on the wire to ensure it is properly secured. The transparent casing of the Wago 221 and 2273 series allows for a visual check of the correct insertion depth.
- Switch the power back on: After all connections have been completed and checked, the power can be switched back on.
Alt text: Step-by-step instructions for correctly connecting electrical wires using a Wago push-in connector.
Frequently Asked Questions About Push-in Connectors
Are Wago push-in connectors reusable?
The Wago 221 and 222 series are designed to be reusable, provided they are not damaged. The Wago 2273 series is primarily intended for single use, though in principle it can be unplugged.
Do I need special tools?
No, the main advantage of most Wago push-in connectors is that they work without special tools. A wire stripper is recommended to strip the wires properly.
What applications are push-in connectors suitable for?
Push-in connectors have a wide range of uses in domestic installations, from connecting lighting and sockets to installing new circuits in junction boxes. They are reliable for both indoor and, with the appropriate IP rating in a suitable enclosure, outdoor applications.
Choose Wago push-in connectors for a professional, safe, and durable electrical installation. They simplify the wiring process and deliver the assurance of a high-quality connection.
